Herculite Glass Door Service and Custom Hardware Repair – Newport Beach, CA

Herculite glass doors require a high level of experience to service safely and correctly. This Herculite door service project in Newport Beach, California was a clear example of why careful assessment and skilled execution matter.

The original call came in as an urgent “glass hitting glass” issue, which is one of the most serious problems an all-glass door system can have. When glass panels contact each other, the risk of breakage, injury, and forced closure is very high. This required immediate attention to stabilize the door and keep the store open.

First Visit: Emergency Assessment and Temporary Repair

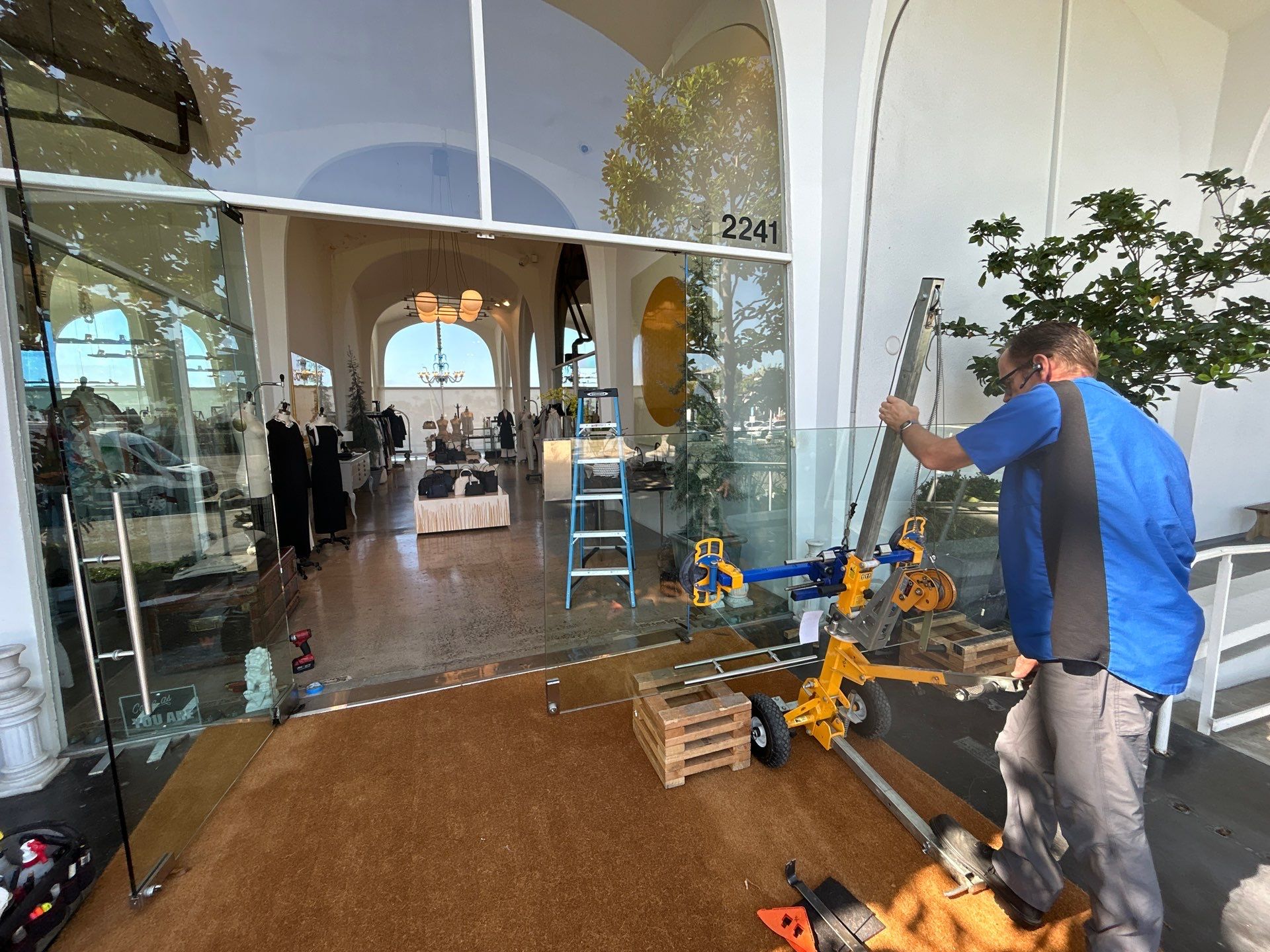

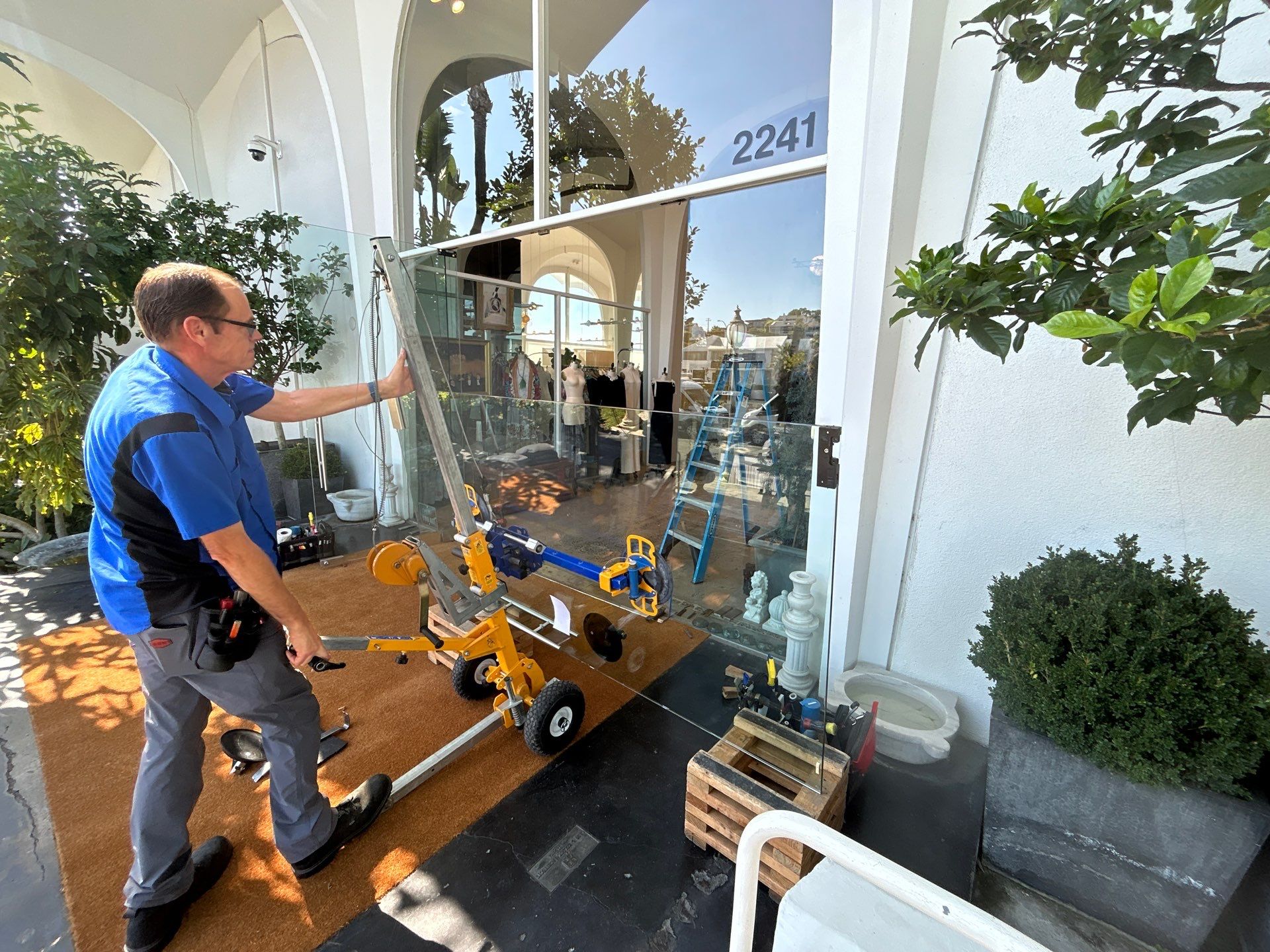

As with all of our door service work, we began with a thorough door assessment, inspecting alignment, hardware condition, and how the glass was interacting within the system. Because this was a large, thick Herculite glass door, the job required two technicians and the use of a Quattro Lift to safely support and control the glass during service.

During the assessment, we found that the door’s operation depended on a custom-modified closer arm and patch fitting connection from a previous installation. This is not uncommon with Herculite systems, where original installers sometimes modify components to make a configuration work.

To keep the store open and eliminate the immediate glass-to-glass contact, we repaired and stabilized the existing closer arm on the first visit. This temporary repair corrected the dangerous condition and allowed the door to continue operating safely while replacement parts were identified and ordered.

With Herculite doors, our goal on the first trip is always to adjust and preserve existing hardware whenever possible, as these systems are durable when properly set up.

Why Herculite Door Parts Require Custom Matching

Unlike standard commercial doors, where we stock most replacement parts on our service vehicles, Herculite doors rarely share identical configurations. Patch fittings, arms, slides, and connections often vary from door to door, especially when custom modifications have been made.

In this case, the new parts could not simply be installed off the shelf. We had to match the original custom modification so the new closer arm and patch fitting connection would work correctly within the existing system. This level of customization is a key part of high-skill Herculite door service.

After completing the assessment, we safely reassembled the door, sourced the correct parts, and prepared for the return visit.

Second Visit: Custom Modification and Permanent Repair

Once the replacement components arrived, we returned to complete the permanent repair. This included:

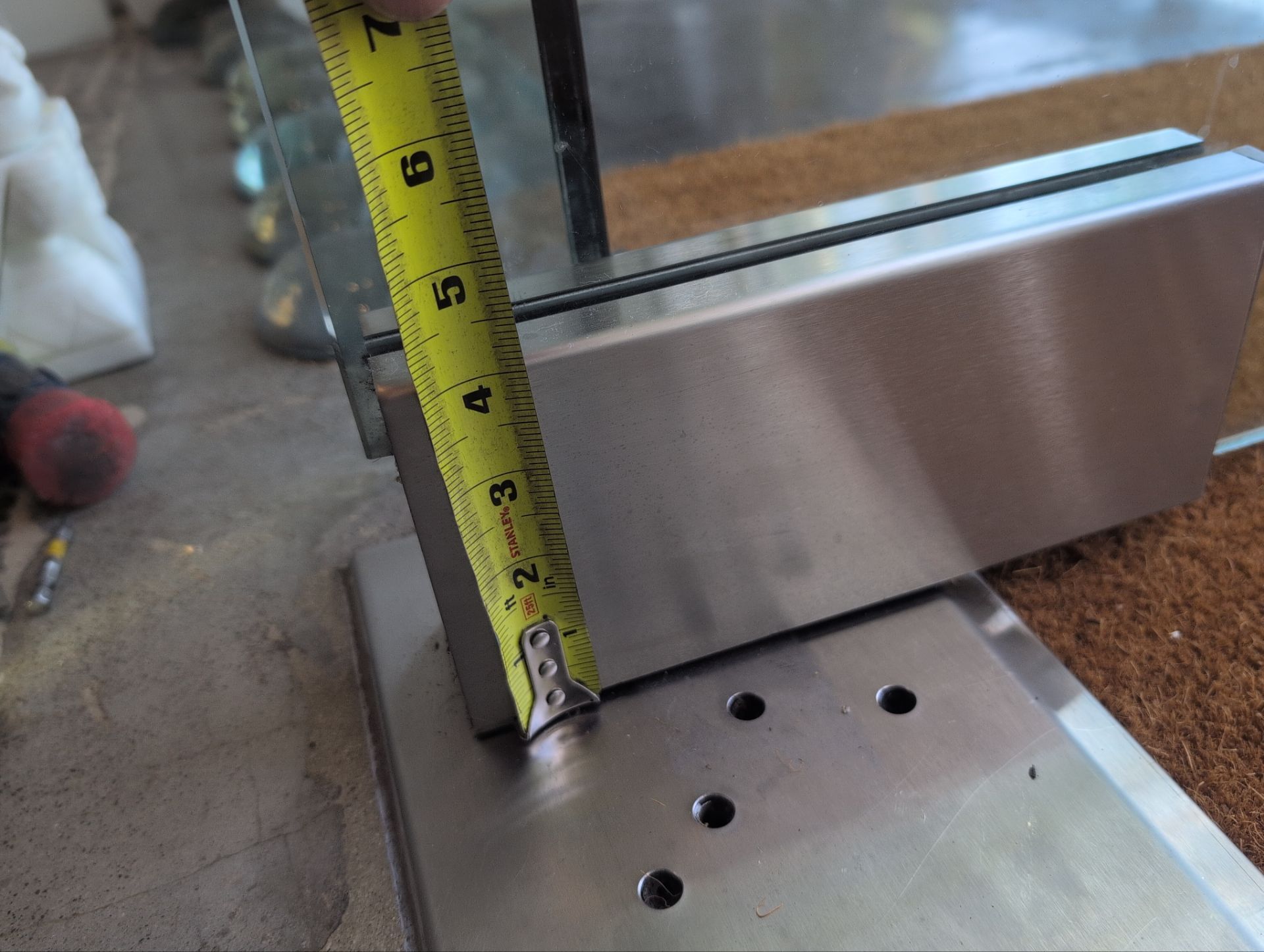

Replacing the bottom patch slide

Installing a new closer arm

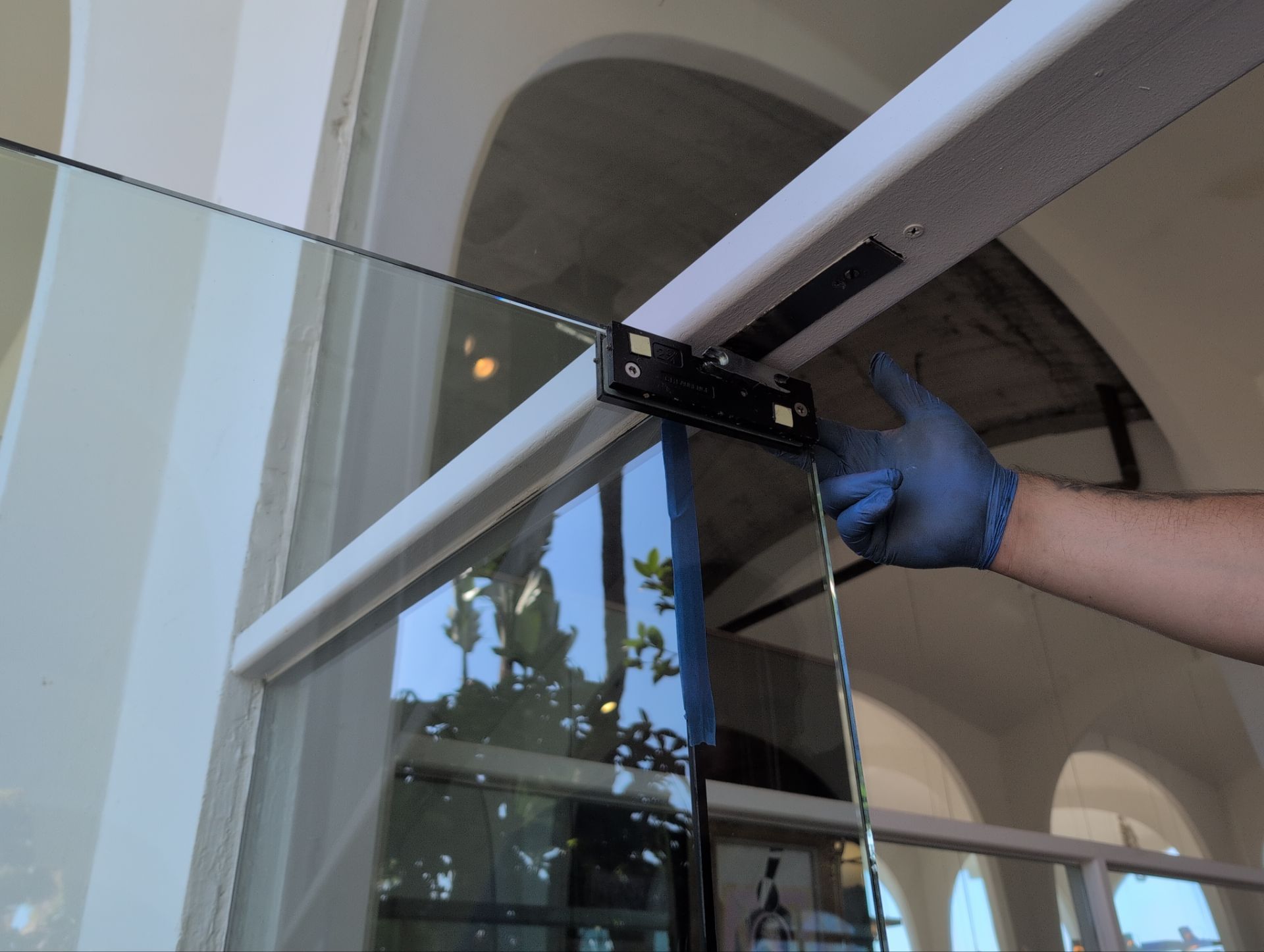

Custom-modifying the new closer arm and patch fitting connection to match the original system design

Final precision adjustments to eliminate glass contact and ensure smooth, controlled operation

Common Causes of Herculite Door Failures

Many of the Herculite door problems we see stem from improvised original installations. All-glass systems have extremely tight tolerances. Even slight sagging can cause the glass to drag, contact other panels, or fail entirely, creating serious safety and security hazards.

Inadequate installation often places excess strain on patch fittings and closers, leading to premature wear and repeated failures. Correct assessment, proper support, and precise adjustment are critical.

Services Provided:

Commercial Herculite door service in Newport Beach, CA

Emergency response for glass-to-glass contact

Full door assessment and adjustment

Two-technician handling of large glass panels

Quattro Lift support for heavy Herculite glass

Temporary closer arm repair to keep store open

Custom modification of closer arm and patch fitting

Bottom patch slide replacement and final alignment

The Result

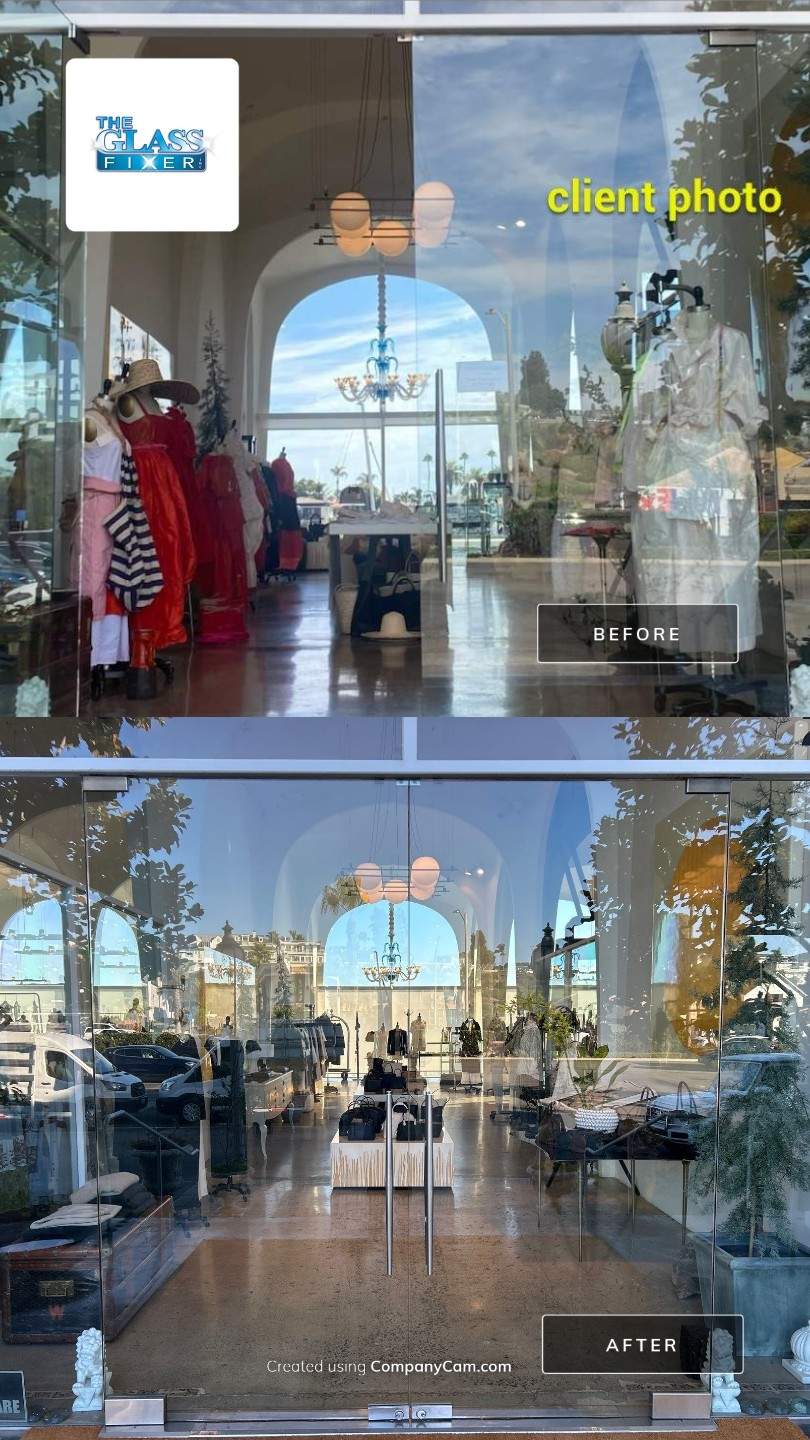

The door was stabilized, repaired correctly, and returned to safe, smooth operation with all glass-to-glass contact eliminated. Most importantly, the store remained open throughout the process while the necessary long-term repair was completed.

This project highlights why Herculite doors should only be serviced by experienced technicians who understand all-glass systems, custom hardware configurations, and the risks involved.

Budget: $5200

Location: Newport Beach
